Nando 502 Wash
- Ayrton
- 6 Series
6 Series - Source: 12 RGB-L LED
Lumens: 10,000
Native CRI: greater than 86
Zoom aperture: 3.5° to 53°
Front Lens: 210 mm

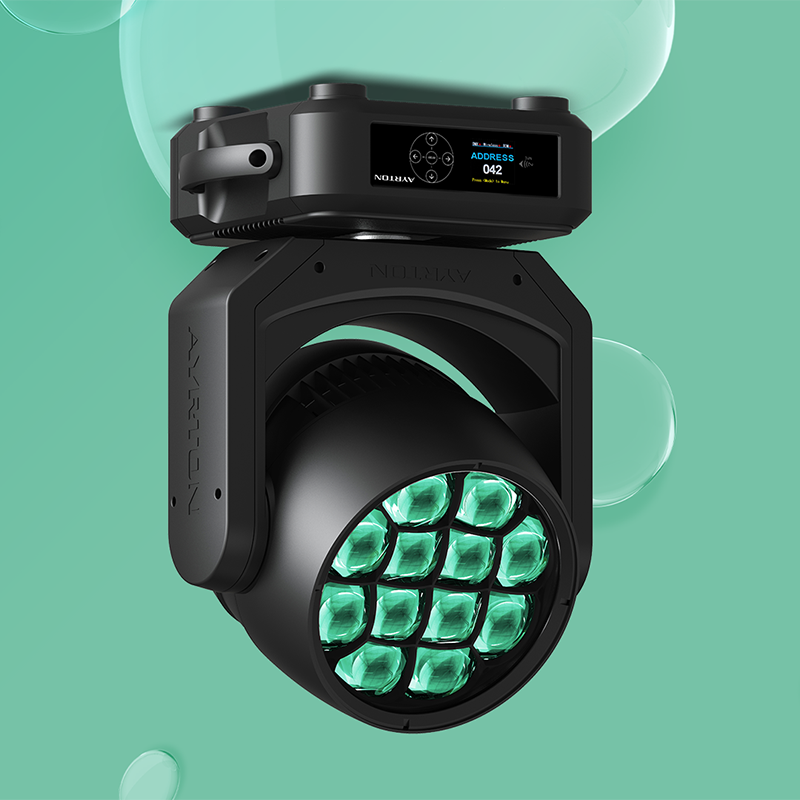

NANDO 502 WASH is an incredibly compact luminaire for stage lighting, specially designed for mixed use, both indoors and outdoors, and in salty environments.
The new minimalist design of NANDO 502 WASH ensures full accessibility to all functions on this lightweight luminaire. By decreasing the thickness of the aluminium parts, optimising the cooling system, simplifying lens guidance, and integrating low-density optical components, AYRTON has been able to reduce overall weight by 20%. NANDO 502 WASH is fitted with 12 high-performance 40 W LED sources with RGB-L additive colour synthesis and a proprietary optical system made up of a unique 210 mm cluster in PMMA. This works in combination with 12 glass light-guides with an output surface made of an optical micro-structure. Perfectly suited to stage lighting, this new LED source offers the advantage of better integration into the colour space and facilitates colour reproduction.
NANDO 502 WASH can achieve a luminous flux of 10,000 lumens and offer a perfectly homogeneous mix of pastel or saturated colours.
NANDO 502 WASH is a precision machine that allows perfect colour reproducibility with a colour rendering index greater than 86. Versatile, it can instantly switch from beam to wash with an excellent zoom ratio of 15:1 and a zoom range of 3.5° to 53°. Its black honeycomb and perfect separation of the light sources help to significantly boost the level of contrast. The anti-reflective treated glass window guarantees an optimal visual result and increased performance. A new submersible ventilation system in a non-waterproof compartment allows for optimal cooling. A complete library of pre-programmed colours allows you to quickly create subtle, dense and contrasted swaths of colour. AYRTON has installed separate LED source control channels on all WASH versions and included a virtually infinite library of effects.
OPTICS
2-element 15:1 zoom high-resolution optic system
Beam aperture: 3.5° to 53°
Fast motorised linear zoom
12 truncated edges 70 mm frontal lenses
210 mm front lens cluster
LIGHT SOURCE
12 x 1,000 lumens RGB-L High-Power LED sources
Total luminaire output: up to 10,000 lumens
CRI: greater than 86
Rated life (L70): up to 40,000 hours
Flicker free sources management, suitable for TV applications and all video recorded events
MOVEMENT
Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movement.
PAN and TILT automatic repositioning
Moving-head range: 540° pan & 270° tilt
COLOURS
Sophisticated 4 colours RGB-L mixed, reaching high Colour Rendering Index
Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
4.29 billion colours (8 bit resolution)
Virtual colour wheel, including most usuals white colour temperature presets
EFFECTS
2D & 3D graphical effects capabilities
Effects can be coupled with beam, wash or matrix applications
Built-in pattern effects with speed and fade controls for scenic applications
Individual control of each pixels
DIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
Information menu including hour counter, temperature, software version
HARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function
5 menu buttons to set functions
Excess temperature protection
Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™

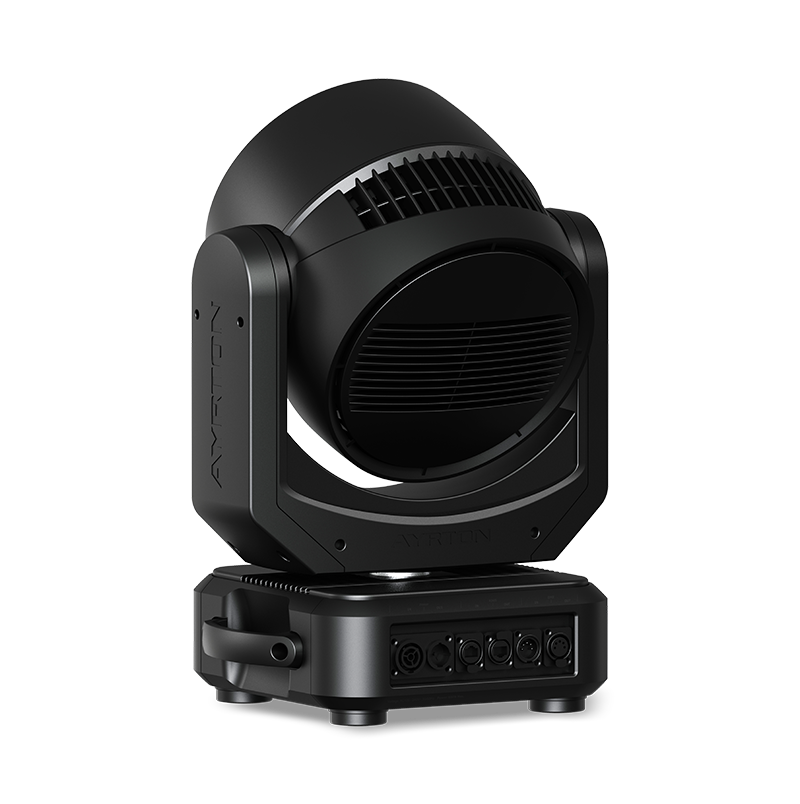

XLR 5 pin male and female connectors for DMX connection
IP65 RJ45 IN / OUT connectors for ArtNet™ connection
powerCON TRUE1 IN / OUT connectors for power connection
CONTROL
DMX 512 protocol, through DMX cable
DMX-RDM compatible
Stand-alone mode and Master/Slave modes
ArtNet™ & sACN protocol through Ethernet cable
Local control panel, with LCD display
Choice of 3 DMX modes (26 to 86 DMX channels)
POWER SUPPLY
Electronic supply with active PFC
100 to 240 Volts – 50/60Hz
Power: 550 W maximum
COOLING SYSTEM
Advanced cooling system
Self adjusting variable speed fans for quiet operation (Auto mode)
Selectable auto, stage & silence ventilation modes
Safety protection against temperatures excesses
HOUSING
Skeleton made of aluminium and steel plates
Base in die-cast aluminium
Heatsinks in aluminium
Moulded covers in self-extinguishing fire retardant ABS PC (V0 class) Two sides handles for transportation
Four heavy-duty feet for better stability
IP65 protection rating
Exterior finish: black (Carbon)
INSTALLATION
Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clamps
Mounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaire
Safety cable attachment point
OPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)
Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F)
Minimum usage distance: 1 m (3.82 ft)
COMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EU
LVD Directive 2014/35/EU
US (Safety & EMC)
UL 1573
FCC Part 15, Subpart B: 2018
SIZE
Product: 342 x 467 x 268 mm (l x h x d)
Flight-case foam: 395 x 480 x 335 mm (l x h x d)
WEIGHT
Product: 14.5 kg
PRODUCT CODES
013420: NANDO 502 WASH – IP65 MULTI-SOURCES 6 SERIES
LEGAL
NANDO is AYRTON registered Trademark
NANDO is a patented model
