Kyalami
- Ayrton
- Creative solution
Creative solution - Source: 100 W - 9000 K
Lux at 10 m: 400,000
Native CRI: greater than 70
Beam aperture: 1°
Front Lens: 126 mm
In 2015, AYRTON launched the revolutionary MAGICDOT, an exceptional and utterly creative luminaire that sold by the thousands within months, earning numerous awards worldwide.
Nine years later, with solid experience in making laser source luminaires, AYRTON has developed KYALAMI, the first phosphor laser source luminaire in its Creative Solution series based on the MAGICDOT concept. The essential performance capability of KYALAMI is based on its unique design, extreme miniaturization, and a minimalist cylindrical footprint that allows multiple luminaires to be installed only a few centimetres apart. A sphere of only 265 mm incorporates its 100 W laser module with a cooling system and optics. KYALAMI offers a next generation speckle-free laser source designed for rendering a D65 white point that allows perfect colour reproduction. It pushes all the limits when it comes to beam definition, with native contrast never before achieved by a digital light source, an incredible 1° beam angle, and an extreme range of focus that permits the beam shape to be adjusted according to the operating distance.

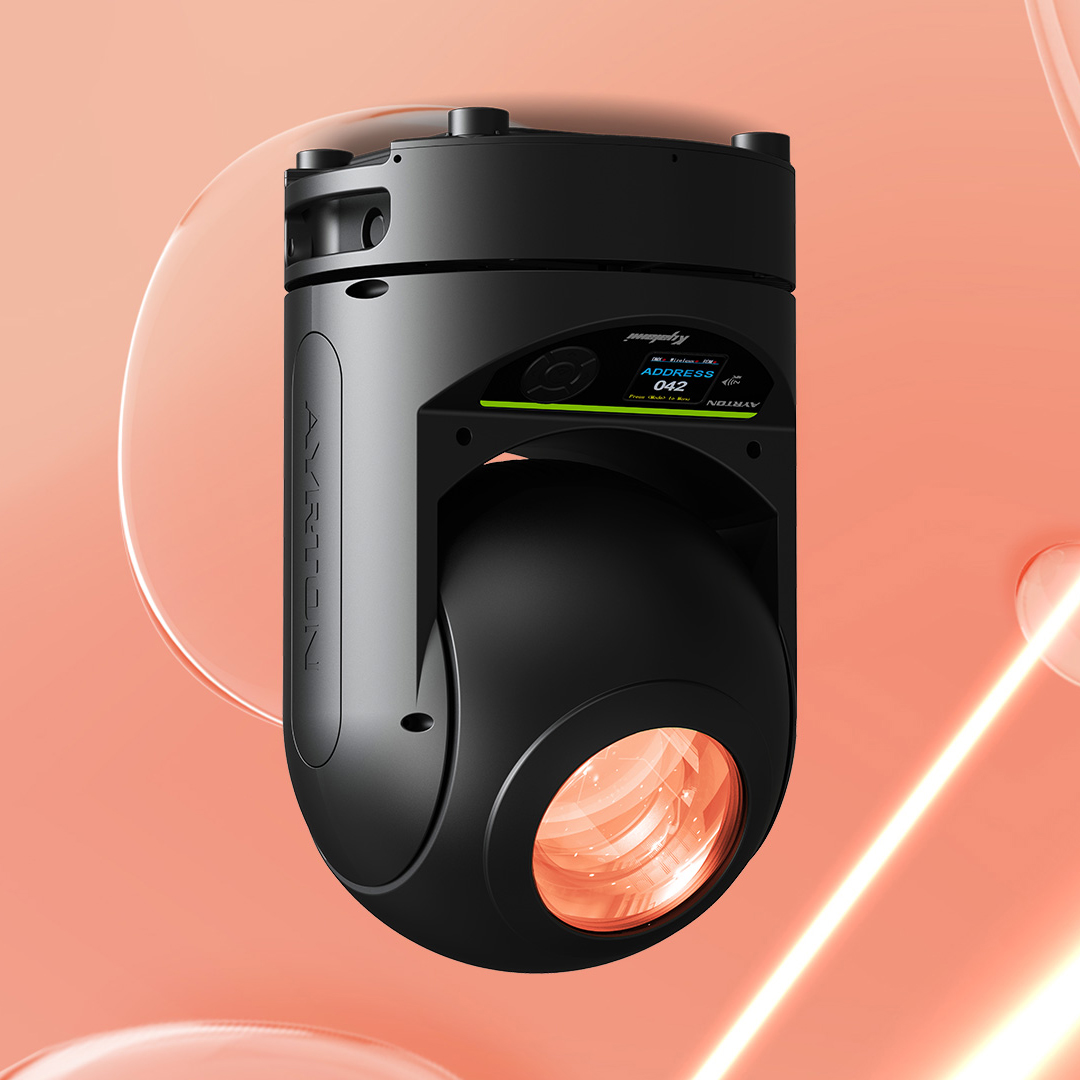

A 126 mm front lens positioned in the continuity of the sphere provides KYALAMI with a unique visual signature.
The proprietary three-lens optical system produces an intensive 1° beam, delivering a record luminous flux of 400,000 lux at 10 m. KYALAMI is provided with a highly innovative colour section including a high-definition progressive CMY colour mixing system and a multi-position instant access colour wheel equipped with five corrective filters, and 17 complementary colour filters. KYALAMI has unrivalled graphics capability, offering a wide choice of 29 fixed metal gobos designed to sculpt light in « beam » mode. These gobos can be blended with two individually combinable rotating prisms allowing you to produce a multitude of volumetric lighting effects. A light and heavy frost filter complete the graphic tool palette. KYALAMI adopts a minimalist style due to simplified waterproofing and the continuous rotation of the pan and tilt movement, increasing the possibilities for generating complex effects and making this luminaire a universal tool capable of meeting any challenge in all conditions. This new ultra-compact luminaire devised for architectural graphic effects offers incredible creative potential.
OPTICS
3-element optic system
Beam aperture: 1°
Fast motorised linear focus
Anti-reflective coated lenses
126 mm frontal lens
LIGHT SOURCE
Luminous flux: 400,000 lux at 10 m
Colour temperature output: 9000 K
CRI: greater than 70
Rated life (L70): up to 12,000 hours
Speckle-free source
MOVEMENT
Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
Pan and tilt automatic repositioning
Moving-head range: infinite pan and tilt rotation
COLOURS
Sophisticated colour mixing system providing CMY color mixing
Fixed colour wheel with 5 color temperature correction and 17 complementary colours
GOBOS
Fixed gobo wheel with instant access to 29 metal gobos
Image diameter: 3 mm
FROST
2 frost filters: one light, one heavy
EFFECTS
2 combinable rotating and indexable prisms: one 8-facet circular, one 5-facet linear
DIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
Strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
Information menu including hour counter, temperature, software version
HARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function
5 menu buttons to set functions
Excess temperature protection
Integrated wireless CRMX TiMoTM RDM receiver from LumenRadioTM

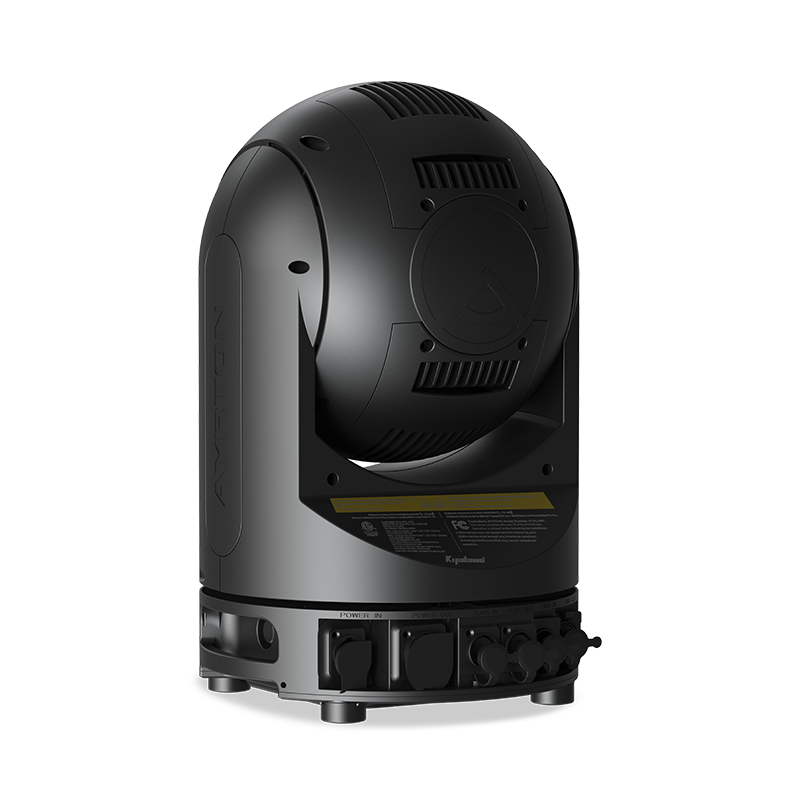

IP65 XLR 5 pin male and female connectors for DMX connection
IP65 RJ45 IN / OUT connectors for ArtNet connection
IP65 PowerCON TRUE1 Top male and female connectors for power connection
CONTROL
DMX 512 protocol, through DMX cable or a wireless system
DMX-RDM compatible
Stand-alone mode and Master/Slave modes
ArtNet & sACN protocol through Ethernet cable
Local control panel, with IP65 LCD display
Footprint of 33 DMX channels
POWER SUPPLY
Electronic supply with active PFC
100 to 240 Volts – 50/60Hz
Power: 200 W maximum
COOLING SYSTEM
Advanced liquid cooling system
IP68 Self-adjusting variable speed fans for quiet operation (Auto mode)
Selectable ventilation user modes including Super Silent Mode
Safety protection against excess temperature
HOUSING
Moving-head skeleton made of aluminium and steel metal plates
Base in die-cast aluminium
Heatsinks in aluminium and copper
Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
Tow-side handles for transportation
Four heavy-duty feet for better stability
IP65 protection rating
Exterior finish: black (Carbon)
INSTALLATION
Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
Mounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaire
Safety cable attachment point
OPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)
Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F)
Minimum usage distance: 15 m (49.21 ft)
COMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EU
LVD Directive 2014/35/EU
US (Safety & EMC)
UL 1573
FCC Part 15: 2020-f
SIZE
Product: 265 x 430 x 265 mm (l x h x d)
Flight-case foam: 320 x 460 x 320 mm (l x h x d)
WEIGHT
Product: 14.5 kg
PRODUCT CODES
014042: KYALAMI – LASER SOURCE IP65 CREATIVE SOLUTION
LEGAL
KYALAMI is AYRTON registered Trademark
KYALAMI is a patented model
