Rivale Wash
- Ayrton
- 3 Series

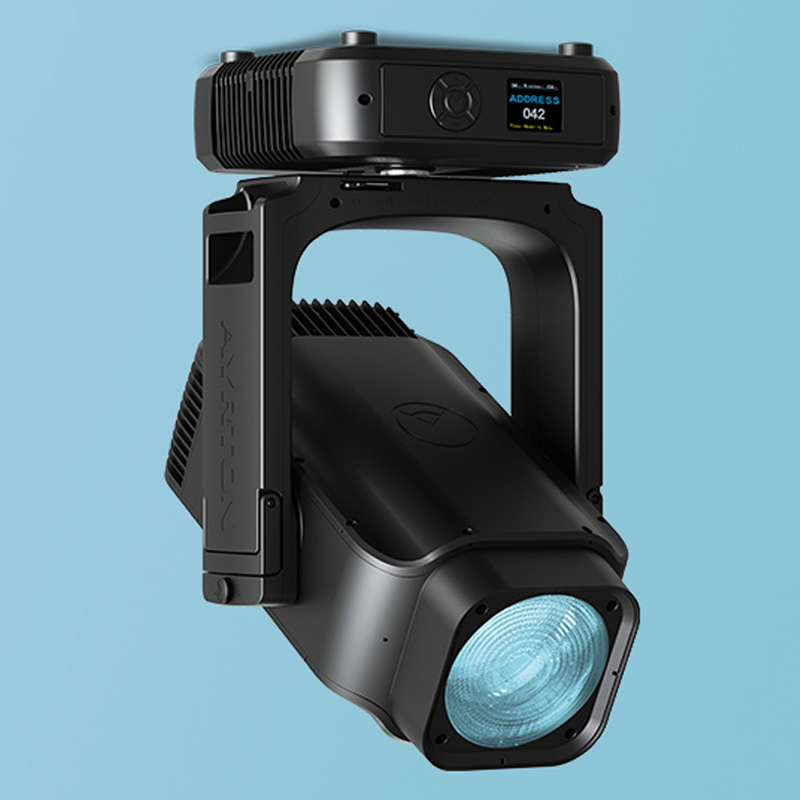

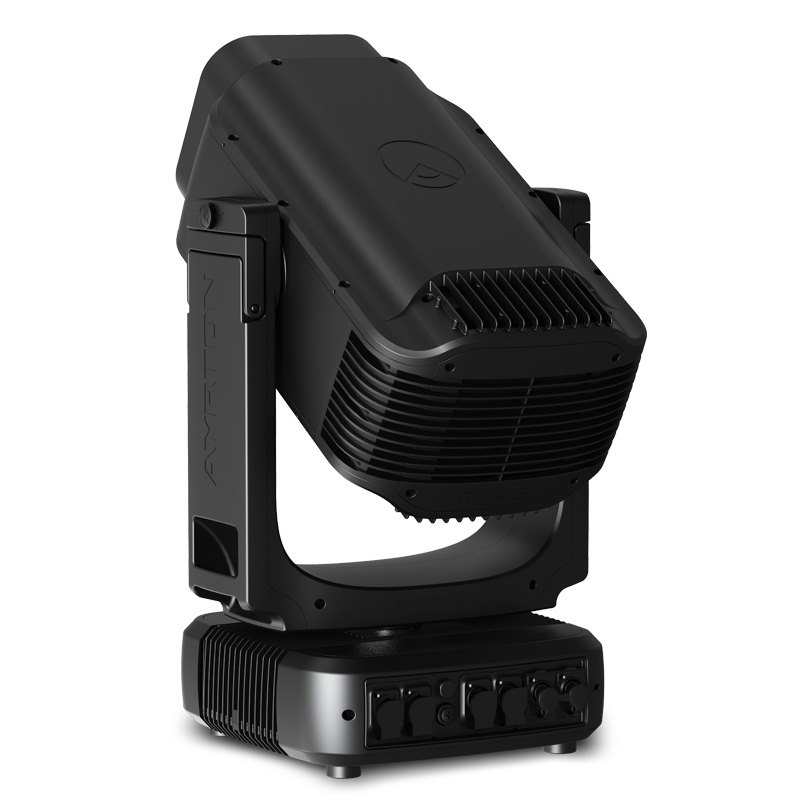

RIVALE WASH is the first ultra-equipped wash luminaire in AYRTON’s brand new «ULTIMATE» range, developed for mixed indoor and outdoor use, including in salty environments.
Weight determines performance, RIVALE WASH weighs just 29.7 kg, offering outstanding performance for a product in this category. RIVALE WASH is without equal on the market, with a unique visual signature. An all-new Fresnel lens, with an optical structure, has been specially developed for use with framing shutters, while also facilitating the use of geometric gobos or ovalization lenses. Its incredible ability to create extremely subtle atmospheres makes it an outstanding Wash projector. Playing with light and shadow… highlighting a detail… mastering chiaroscuro… searching for the perfect nuance… chiselling space… this new-generation luminaire delivers incomparable satisfaction. A subtle progressive frost system allows the level of diffusion to be adapted to suit the application and the accessories or optical elements used. This new Fresnel lens also significantly improves colour mixing and delivers 10% more light compared with a conventional Fresnel lens.
RIVALE WASH is equipped with a brand new 430 W high efficiency sealed monoblock LED module calibrated at 6500 K, offering a luminous flux of 28,000 lumens with optimum positioning on the black body to achieve perfect light neutrality.
The proprietary 12-lens optical system offers a zoom ratio of 14:1 and a range from 4° to 57°. Featuring a 170mm front lens, RIVALE WASH provides an ultra-intensive 4° beam. RIVALE WASH adopts a brand new high-definition progressive CMY colour mixing system that delivers perfect color reproduction as soon as the filter is inserted, regardless of the colour combination selected. An extended progressive CTO enables precise adjustment of colour temperature from 2700 K to 6500 K, and a 7-position colour wheel with special filters completes the palette of tools dedicated to colour creation. For greater flexibility of use, RIVALE WASH offers subtle adjustment of the colour rendering index from 70 to 88. For greater creativity and design freedom, RIVALE WASH comes as standard with infinite continuous rotation on both the pan & tilt axes. RIVALE WASH, a unique spotlight that combines performance, creativity, subtlety and power. An extraordinary luminaire with no equivalent on the market.
OPTICS
12-element 14:1 zoom
Beam aperture: 4º to 57º
170 mm front lens
LIGHT SOURCE
35,000 lumens white light engine
Luminaire output: up to 28,000 lumens
Colour temperature output: 6500 K
CRI: greater than 70
Rated life (L70): up to 40,000 hours
Flicker-free source
MOVEMENT
Highly accurate positioning
Resolution 8- or 16-bit
Smooth movement
Pan and tilt automatic repositioning
Range: infinite pan and tilt rotation
COLOURS
Sophisticated CMY color mixing
Variable CTO
Variable CRI improvement filter
7 complementary colours
GOBOS
7 indexable rotating gobo HD glass gobos
Adjustable-speed rotating gobo
9 fixed HD glass gobo
Gobo diameter: 25.2 mm
Image diameter: 20 mm
Gobo thickness: 1.1 mm
FRAMING SYSTEM
4 individually shutter blades
Positionable on 100% surface area
Rotation of the module: +/- 90º
IRIS DIAPHRAGM
15-blade iris diaphragm
Range: 15% to 100% open
FROST
0% to 100% variable linear frost
EFFECTS
Focusable graphic animation effect-wheel
Continuous rotation in both directions
Indexable de-focusable rotating
beam-shaping optic
DIMMER / STROBE
Electronic dimmer from 0 to 100%
Strobe effect: 1 to 25 flashes per second
HARDWARE FEATURES
Graphic LCD display with flip function
5 menu buttons to set functions
Integrated wireless LumenRadio™ receiver
IP65 XLR 5 pin connectors
IP65 RJ45 connectors
IP65 powerCON TRUE1 TOP connectors
CONTROL
DMX 512 protocol
DMX-RDM compatible
Stand-alone mode, local control panel
ArtNet™ & sACN protocol
60 DMX channels
POWER SUPPLY
100 to 240 Volts – 50/60Hz
Power: 700 W maximum
COOLING SYSTEM
Advanced liquid cooling system
IP68 Self-adjusting variable speed fans
Selectable ventilation user modes
Excess temperature protection
HOUSING
Skeleton made of aluminium
Base in die-cast aluminium
Heatsinks in aluminium and copper
Moulded covers ABS PC (V0 class)
4 handles on the yoke
Four heavy-duty feet
IP65 protection rating
Exterior finish: black (Carbon)
INSTALLATION
2 Omega . turn brackets
Four . turn mounting points
Safety cable attachment point
OPERATING PARAMETERS
Maximum permitted: 45ºC (113ºF)
Minimum permitted: -20ºC (-4ºF)
Minimum usage distance: 2 m (6.56 ft)
COMPLIANCE
EMC Directive 2014/30/EU
LVD Directive 2014/35/EU
US Safety: UL 1573 & FCC Part 15, Subpart B: 2018
SIZE
Product: 360 x 676 x 316 mm (l x h x d)
Foam: 485 x 565 x 560 mm (l x h x d)
WEIGHT
Product: 29.7 kg
PRODUCT CODE
012341: RIVALE WASH
