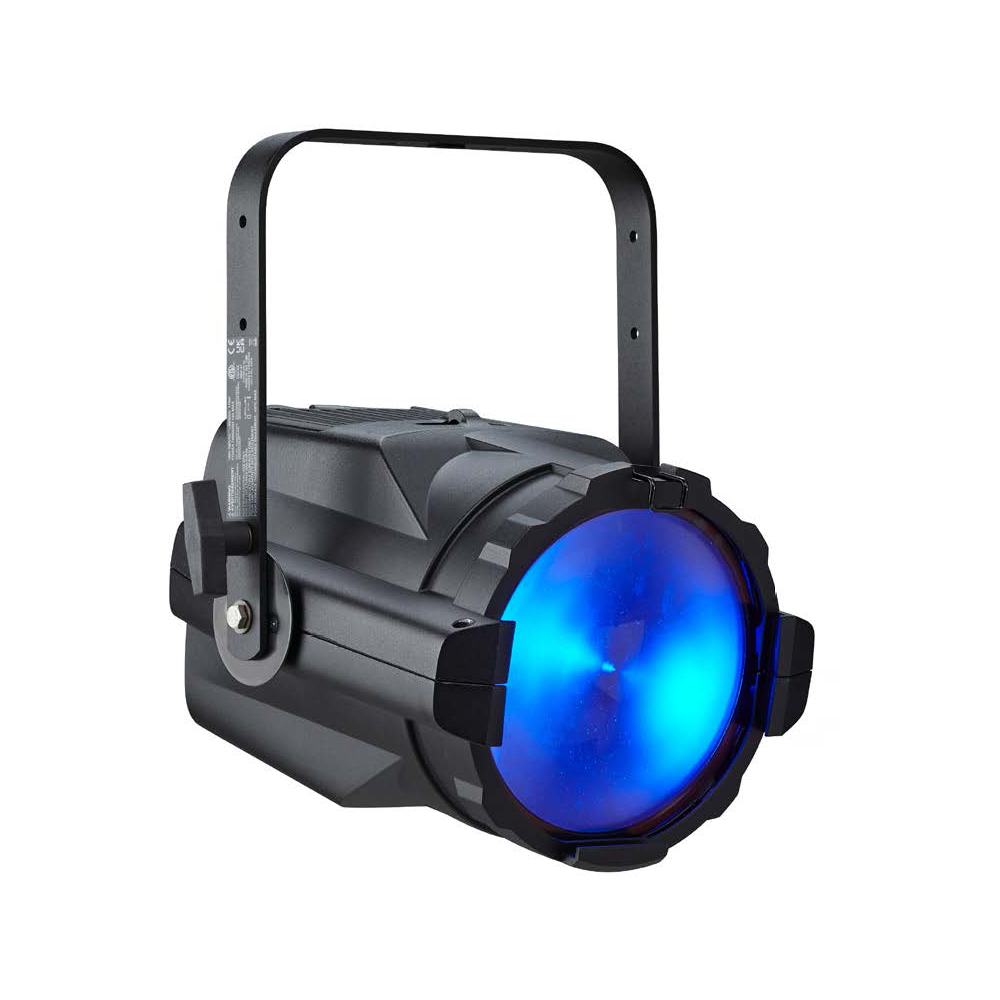

ColorSource Fresnel V MAX
- ETC
- Engines/Corpos de Projetor
An LED luminaire crafted by lighting experts with a proven history of quality fixtures, ColorSource Fresnel V MAX doubles the output of the existing ColorSource Fresnel V but still brings a richness of color and leading technology at a price point you’ll love. Featuring a five-color array of red, green, blue, indigo, and lime, the ColorSource Fresnel V MAX provides soft pastels and bold saturated colors from a single fixture. Control the motorized 13°–44° zoom using DMX or manually from the rear of the fixture. ColorSource Fresnel V MAX also features wireless DMX/RDM control using Multiverse® technology, NFC configuration from your mobile device, and next level brightness, making it the ultimate in affordable wash light technology.
FEATURES
• Five-color array (red, green, blue, indigo, and lime)
• Motorized 13–44 degree zoom with DMX and local control
• Simple user interface with seven-segment display
• powerCON® TRUE1® TOP connector
• DMX/RDM in and thru (5-pin XLR)
• Multiverse wireless DMX/RDM
• NFC (near field communication) configuration
• LED droop compensation
• Optically calibrated
• Tour-ready, aluminum housing
APPLICATIONS
• Theatres and performance spaces
• Houses of worship
• Universities and schools
• Hospitality
• Retail
• Exhibition centers
• Meeting rooms
• Clubs
• Cafetoriums
Source
LED details: 60 Lumileds LUXEON® C ES LEDs
Max lumens: 10,023
Lumens per watt: 48
L70 rating (hours to 70% output)*: 54,000 hours
Color
Colors used: Red, Green, Blue, Indigo, Lime
Color temperature range: Color mixing
Calibrated array: Yes
Red shift: No
Optical
Beam angle range: 13°–44°
Gate size: N/A
Aperture size: 190 mm (7.48 in)
Pattern projection: No
Pattern size: N/A
Camera flicker control/Hz range: 5,000 Hz (default) and 25,000 Hz (via RDM
Control
Input method: 5-Pin XLR, Multiverse wireless, and NFC
Protocols: DMX-512, RDM, City Theatrical Multiverse, NFC
Modes (footprint): 6 modes, see page 6
RDM configuration: Yes
UI type: Seven-segment display, three-button interface, Focus encoder
Local control: Yes
Onboard presets: Yes (12)
Onboard sequences: Yes (5)
Onboard effects: No
FixtureLink: Yes
Notes: 15-bit virtual dimming engine
Wireless
Band: 2.400–2.480 GHz
Range: 100 m indoors, 500 m line of sight (subject to conditions)
Max receivers:
DMX: No limit
RDM: Varies by transmitter used
Multiverse SHoW Baby®: 585
Multiverse Transmitter: 5,000
Broadcast power: 100 mW
Electrical
Voltage range: 100–240 VAC 50/60 Hz
Input method: powerCON TRUE1 TOP power in and thru
Inrush (first half-cycle): 120 V: 36 A | 240 V: 57 A
Fixtures per circuit on standard R20 breaker:
3 (link up to 4 via Power Thru connector)*
Note: TRUE1 connector rated for
20 A (120 V / 60 Hz) and
16 A (240 V / 50 Hz)
Wattage (typical):
120 V: 208 W
230 V: 205 W
Current draw:
120 V: 1.75 A
230 V: 0.95 A
Thermal
Ambient operating temp: 0°C–40° C (32°F–104° F)
Fan (controllable): Yes (yes)
Droop compensation: Yes
Average dB: TBD dBA
BTUs/hour (120 V): 709
Physical
Materials: Cast and extruded aluminum
Color options: Black, white, silver, or custom color
Mounting options: Yoke
IP rating: IP20
Weight: 6.24 kg (13.75 lb)
Included accessories: Yoke, power cable
Warranty
Fixture: 5 years
LED array: 10 years
Regulatory and Compliance
Approved regulatory standards: cETLus Listed Conforms to UL 1598 & 924 Complies to CSA C22.2 No. 250.0 and 141 CE & UKCA compliant
