STRADALE PROFILE
- Ayrton
- 1 Series

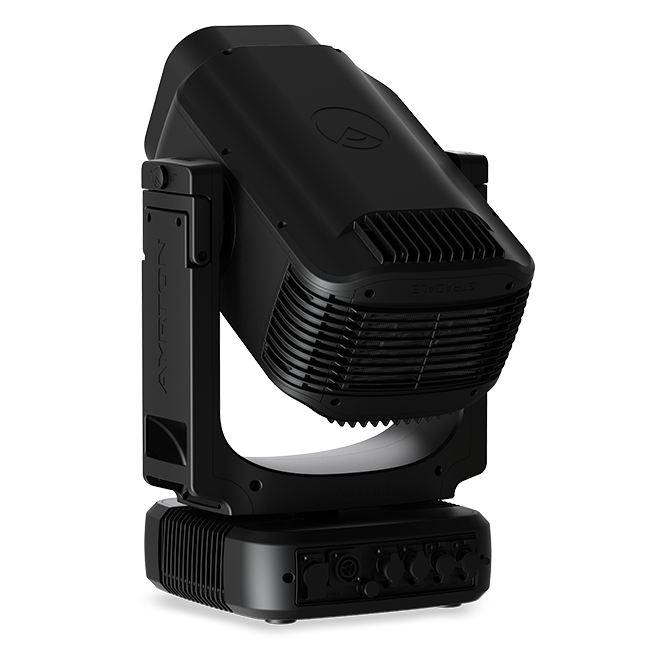

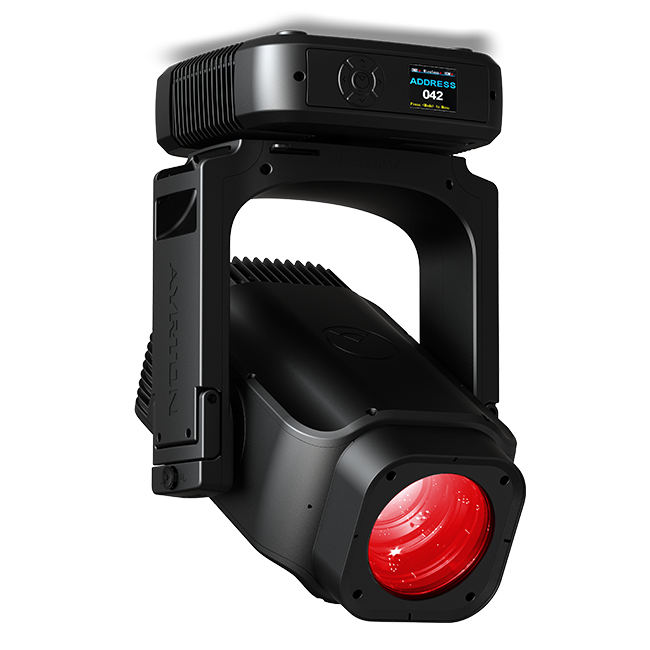

Stradale Profile embodies the principle of perfect scalability within Ayrton’s Ultimate series, standing as the first ultra-compact luminaire of the brand-new 1 Series. Following in the footsteps of Rivale, it reduces its visual footprint by 15%, achieving this through meticulous engineering and extreme miniaturisation. Every detail was optimised—streamlining the structure, refining effect modules, and minimising component size—to push integration to new limits. This unique format led to the development of an all-new high-efficiency 330 W LED module, precisely calibrated at 6500 K, delivering a luminous output of 20,000 lm with optimal black body positioning to ensure perfectly neutral light. Designed for both indoor and outdoor use in any environment, Stradale Profile stands apart with a distinctive visual signature. Lightweight construction plays a key role in its performance—tipping the scales at just 23.5 kg, it sets an unprecedented benchmark for its category. To unlock new creative possibilities, it features infinite continuous rotation on both pan and tilt axes. Equipped with a 140 mm front lens, its proprietary 13-lens optical system delivers a remarkable 13:1 zoom ratio, with a versatile range spanning from 4º to 52º.
Stradale Profile introduces an all-new ultra-fast CMY progressive gradient mixing system, ensuring seamless colour transitions, brighter output, and impeccable uniformity. A refined extended CTO system allows precise adjustment of colour temperature from 2700 K to 6500 K, while a seven-position colour wheel, equipped with specialised filters, expands the creative palette. For greater flexibility, Stradale Profile offers a fine-tuned colour rendering index adjustment from 70 to 86. The framing system provides precise positioning of each shutter blade across 100% of the beam with a rotation of +/- 90º. A rapid 15-blade iris allows beam optimisation with an adjustable range from 15% to 100%. The image section includes 19 high-definition interchangeable glass gobos across two wheels—nine rotating and ten fixed— designed to elevate textural and aerial effects. The effects module features a monochromatic animation wheel and two combinable rotating prisms: a fivefacet circular prism and a four-facet linear prism. Additionally, Stradale Profile offers two frost filters: one soft diffusion filter to smooth edges without altering the beam angle and a heavier diffusion filter for true wash applications. Stradale Profile is a one-of-a-kind luminaire, seamlessly merging performance, creativity, finesse, and power—an exceptional fixture with no equivalent on the market.
TECHNICAL SPECIFICATIONS
Optics
13-element 13:1 zoom high-resolution optic system
Beam aperture: 4° to 52°
Fast motorised linear zoom
Tempered anti-reflective coated lenses
140 mm frontal lens
Light source
26,000 lumens white light engine
Total luminaire output: up to 20,000 lumens (integrating sphere measurement, Stage Fan mode)
Colour temperature output: 6500 K
Variable CRI: 70 to 86
Rated life (L70): up to 40,000 hours
Flicker-free source management suitable for TV applications and all video-recorded events
Movement
Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
Pan and tilt automatic repositioning
Moving-head range: infinite pan and tilt rotation
Colours
Sophisticated colour mixing system providing CMY color mixing
Variable CTO colour temperature correction
Variable CRI improvement filter
Fixed colour wheel with seven complementary colours
Multicolored section
Gobos
Indexable rotating gobo wheel with nine high precision glass gobos, plus open position
Adjustable-speed rotating gobo in both directions
Fixed gobo wheel with 10 high-precision glass gobos, plus open position
Gobo diameter: 18.0 mm
Image diameter: 13.0 mm
Gobo thickness: 1.1 mm
Framing system
4 individually positionable shutter blades on a 100% surface area in all positions
Rotation of the shutter blades module: +/- 90°
Iris diaphragm
Fast iris diaphragm with adjustable dynamic effects
Iris range: 15% to 100% open
Frost
2 frost filters : one light, one heavy
Effects
Focusable graphic animation effect-wheel with continuous rotation in both directions
2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linear
Dimmer / Strobe
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
Strobe effect, with speed adjustment from 1 to 25 flashes per second
Software features
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
Information menu including hour counter, temperature, software version
Hardware features
Graphic LCD display for addressing and special functions settings, with flip function
5 menu buttons to set functions
Excess temperature protection
Integrated wireless CRMX TiMo RDM receiver from LumenRadio
IP65 XLR 5 pin male and female connectors for DMX connection
IP65 RJ45 IN / OUT connectors for ArtNet connection
IP65 PowerCON TRUE1 male and female connectors for power connection
Control
DMX 512 protocol, through DMX cable or a wireless system
DMX-RDM compatible
Stand-alone mode and Master/Slave modes
ArtNet & sACN protocol through Ethernet cable
Local control panel, with IP65 LCD display
Choice of 2 DMX modes (from 42 to 65 DMX channels)
Power supply
Electronic supply with active PFC
100 to 240 Volts – 50/60Hz
Power: 580 W maximum
Cooling system
Advanced liquid cooling system
IP68 Self-adjusting variable speed fans for quiet operation (Auto mode)
Selectable ventilation user modes including Super Silent Mode
Safety protection against excess temperature
Housing
Moving-head skeleton made of aluminium and steel metal plates
Base in die-cast composite alloy
Heatsinks in aluminium and copper
Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
Four-side handles for transportation
Four heavy-duty feet for better stability
IP65 protection rating
Exterior finish: black (Carbon)
Installation
Fastening bracket system: two Ome
