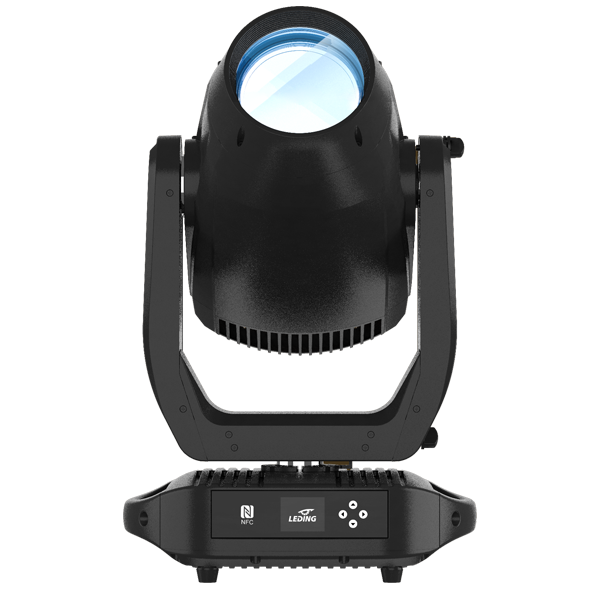

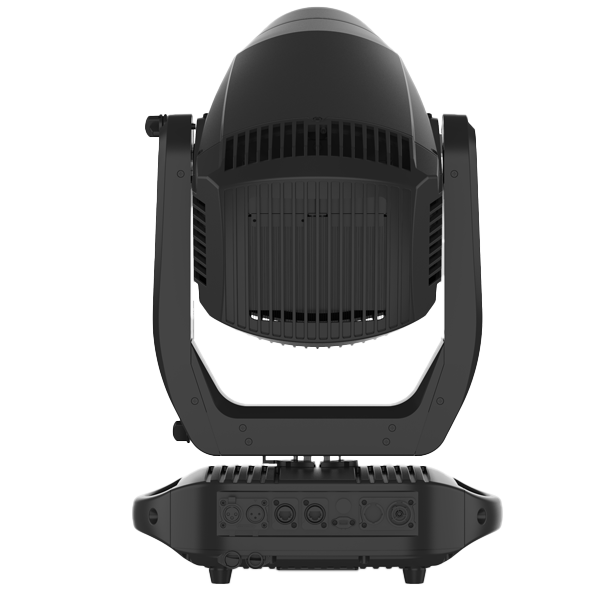

RAZER 650i Profile is a 650W light source LED moving head, with Profile, Spot, Beam and other functions. Its optical system can go from 6° to 50° zoom and produce, at 5 meters distance, up to 113,000 lux. It also features a Y-axis with 1.5 seconds speed per round, NFC function, a linear CMYK colour mixing system that provides rich colour saturation, adjustable linear CTO colour temperature, and a very precise framing system with 4 individually controllable blades and rotatable module.
The dynamic effects tray can be dyed with water and fire effects. Designed to provide the best choice for venues such as theatre, TV stations, concerts and rental shows.
Light Source and Optical System
LED Module: 650W white LED engine
Color Temperature: 7000K
Total Engine Output: 54000 lumens
CRI Ra: 68
Rated Life (L70): 20000 hours
PWM: 650Hz, 1530Hz, 3600Hz, 12kHz, 18,9Hz, 25kHz
Motorized Zoom Angle: 6º-50º
Control System
Dimmer: Opera dimming effect (0-100% 24Bit dimming)
Cooling: Air cooling
Control: DMX/ARTNET/SACN/W-DMX(selectable)/WIFI
Display: Display board control static, 0-25Hz stroboscopic
Con Personality: STANDARD9(41CHS)?BASIC(35CHS)?EXTEND(44CHS)
Appearance
Size: 416x364x728mm
Weight: 35kg
Casing: Die-cast magnesium alloy
Color: black
Electrical Specs
Voltage: AC100-240V
Max. Power: 800W
Power Connection: Power in
Signal socker: Three or five core input/output RJ45 input/output
Effect synthetic system
Rotating gobos: 7 rotating Gobo wheel + white, Gobo-flow effect, Gobo shake effect, Bi-directional rotation
Static Gobo: 8+1
Colors: 1 color wheel (6 colors+white, rainbow-flow effect)
Animation wheel: Bi-directional rotation, water and flame effect, speed Speed adjustable
Prism: 1 pentaprism, positive and negative rotation, adjustable speed
Focusing: With linear focus function
CMYK: CMY,CTO
Framing system: 4 shutter blade, Each blade´s angle and direction can be individually controlled, fully blackout; The whole Framing module is +- 45º rotatable
Iris: 5-100% linear aperture adjustment with macro function
Focus: With linear zoom function
Frost: Light + heavy Frost
Work Environment:
Ambient Temp: -20ºC -45ºC
IP Rated: IP66
Certification:
Certification CE
