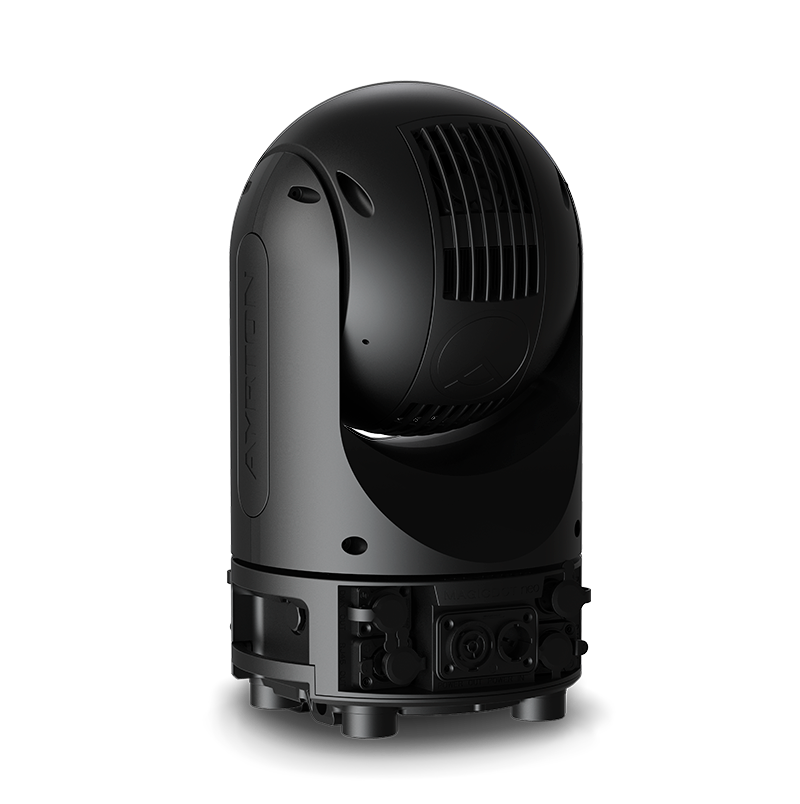

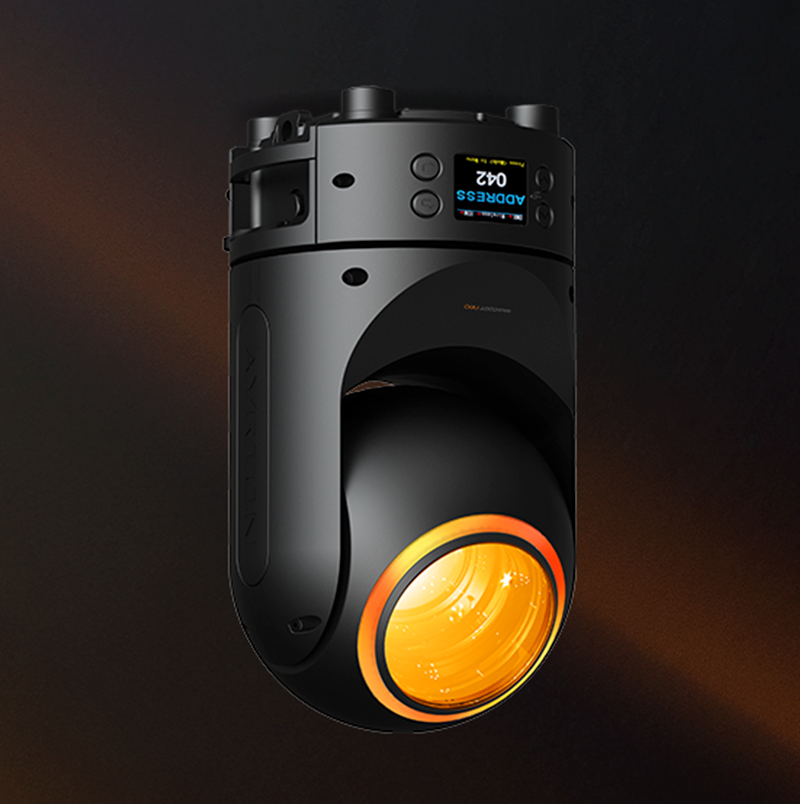

MAGICDOT NEO
- Ayrton
- Creative solution
Very compact, lightweight, ultra-fast and powerful, MagicDot Neo represents the ultimate evolution of this innovative family of fixtures.
Designed for stage lighting and engineered for mixed indoor and outdoor use—even in saline environments—it features a brand-new 120 W multi-chip RGB-L LED source paired with a high-efficiency 100 mm optic, delivering a total output of 3,000 lm for just 160 W of power consumption. The high output of this LED source required a bespoke cooling solution based on a phase-change heat pipe. MagicDot Neo switches from Beam to Wash in an instant, offers a 10:1 zoom ratio and covers a wide beam angle from 3 ° to 30 °. Continuous dual rotation on the pan and tilt axes allows fixtures to be clustered so that each light source can be individually controlled in every direction, and the minimal spacing between units makes previously impossible configurations achievable.
OPTICS
2-elements 10:1 zoom
Beam aperture: 3 ° to 30 °
Fast motorised linear zoom
100 mm front lens
LIGHT SOURCE
5,000 lm RGB-L LED source
Total luminaire output: up to 3,000 lm
Illuminance at 5m : 16,000 lux
CRI: up to 86
Rated life (L70): up to 40,000 hours
Flicker free sources management, suitable for TV applications and all video recorded events
MOVEMENT
Highly accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.
Pan and tilt automatic repositioning
Moving-head range: infinite pan and tilt rotation
COLOURS
Sophisticated 4 colours RGB-L mixed, reaching high Colour Rendering Index
Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
4.29 billion colours (8-bit resolution)
Virtual CTC channel, from 2500 to 8000K
Virtual Tint channel
EFFECTS
Liquid Effect with 60 individual pixels
Built-in pattern effects with speed and fade controls
DIMMER / STROBE
Electronic dimmer from 0 to 100%
Strobe effect: 1 to 25 flashes per second
HARDWARE FEATURES
Graphic LCD display with flip function
4 menu buttons to set functions
Integrated wireless CRMX TiMo RDM receiver from LumenRadio
IP65 XLR 5 pin male and female connectors for DMX connection
IP65 RJ45 IN / OUT connectors for ArtNet connection
IP65 PowerCON TRUE1 TOP male and female connectors for power connection
CONTROL
DMX 512 protocol, through IP65 DMX cable or wireless system
DMX-RDM compatible
Stand-alone mode and Main/Follow modes
ArtNet & sACN protocol through IP65 Ethernet cable
Local control panel, with IP65 LCD display
Footprint of 35 DMX channels
POWER SUPPLY
Electronic power supply with active PFC
100 to 240 Volts – 50/60Hz
Power: 160 W maximum
COOLING SYSTEM
Advanced liquid cooling system
IP68 Self-adjusting variable speed fans
Selectable ventilation user modes
Excess temperature protection
HOUSING
Moving-head skeleton made in die-cast aluminium
Base in die-cast aluminum
Heatsinks in aluminium and copper
Moulded covers ABS PC (V0 class)
Two handles for transportation
Four heavy-duty feet
IP65 protection rating
Exterior finish: black (Carbon)
INSTALLATION
Fastening brackets system: One Omega ¼ turn brackets designed for use with standard clamps
Mounting points: Two ¼ turn locking fittings allowing installation of Omega brackets on luminaire
Safety cable attachment point
OPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)
Maximum temperature (Ta max): 45 °C (113 °F)
Minimum temperature (Ta min): -20 °C (-4 °F)
Minimum usage distance: 0.5 m (1.64 ft.)
COMPLIANCE
EU (EMC & LVD):
EMC Directive 2014/30/EU
LVD Directive 2014/35/EU
US (Safety & EMC):
UL 1573 & FCC Part 15: 2020-f
Substance regulations
RoHS
REACH
CP65
SIZE
Product: 197 x 353 x 197 mm (l x h x d)
Flight-case foam (dual): 500 x 310 x 250 mm (l x h x d)
WEIGHT
Product: 6.6 kg
PRODUCT CODES
015180: MagicDot Neo – Classical IP65 Creative Series
