MAGICBLADE NEO

  1. Ayrton
  2. Creative solution

MAGICBLADE NEO

Solicitar orçamento

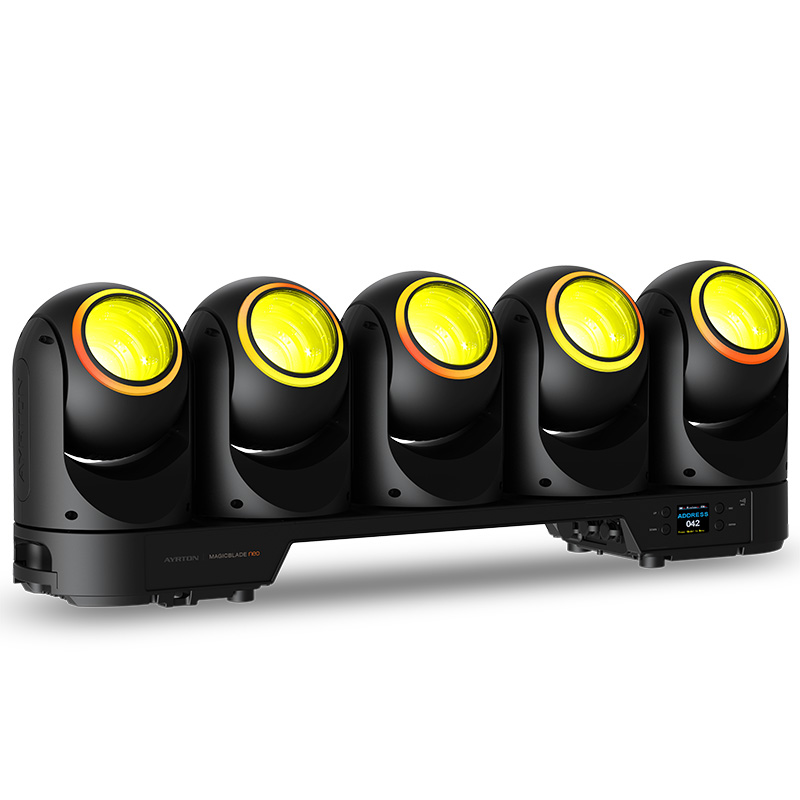

Ayrton has always innovated and made an impact with luminaires that are surprising, inspiring, and radical. MagicBlade Neo is a brand-new concept: an innovative organic fixture designed to create multi-form curtains of light, reconfigurable ad infinitum—unreal vortices, and striking volumetric effects.

Built on the all-new MagicDot Neo platform, it features five independent moving heads, spaced 5 mm apart, with continuous rotation on both pan and tilt axes. Its innovative ‘Short Cut’ function expands the scope for building complex effects. Fitted with five individual 120 W RGB-L multi-chip LED sources, each paired with a high-efficiency 100 mm optic integrated into a perfect sphere, it delivers a total luminous flux of 15,000 lm. MagicBlade Neo offers an extended colour space and smooth mixing of pastel or saturated colours, enabling perfect colour repeatability with a CRI above 86. Each MagicBlade Neo beam can switch instantly from Beam to Wash, with a 10:1 zoom ratio and a very wide usable range from 3.0° to 30°.

Página do fabricante Brochura Manual de Utilizador Personalidades de controlo

  • Optics

    • 2-element 10:1 zoom high-resolution optic system
    • Beam aperture: 3° to 30°
    • 5 x Fast motorised linear zoom
    • Tempered anti-reflective coated lenses
    • 5 x 100 mm front lens



    Light source

    • 5 x 5,000 lm RGB-L led sources
    • Total luminaire output: up to 15,000 lumens (integrating sphere measurement, Fan mode STAGE)
    • Illuminance at 5m: 16,000 lux (one head)
    • CRI: up to 86
    • Rated life (L70): up to 40,000 hours
    • Flicker-free source management suitable for TV applications and all video-recorded events



    Movement

    • Highly accurate positioning
    • Moving-head operated via either 8- or 16-bit resolution
    • High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
    • Pan and tilt automatic repositioning
    • Moving-head range: 5 x infinite pan and tilt rotation



    Colours

    • Sophisticated 4 colours RGB-L mixed, reaching high Colour Rendering Index
    • Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
    • 4.29 billion colours (8-bit resolution)
    • Virtual CTC channel, from 2500 to 8000K
    • Virtual Tint channel



    Effects

    • Individual control of each head
    • Liquid Effect with 60 individual pixels
    • Built-in pattern effects for main leds and Liquid Effect, with speed and fade controls



    Dimmer / Strobe

    • Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
    • Strobe effect, with speed adjustment from 1 to 25 flashes per second



    Hardware features

    • Graphic LCD display with flip function
    • 4 menu buttons to set functions
    • Integrated wireless CRMX TiMo RDM receiver from LumenRadio
    • IP65 XLR 5 pin male and female connectors for DMX connection
    • IP65 RJ45 IN / OUT connectors for ethernet connection
    • IP65 Power male and female connectors for power connection
    • Maximum current available at the output socket : 12 A



    Control

    • DMX 512 protocol, through DMX cable or a wireless system
    • DMX-RDM compatible
    • Stand-alone mode and Main/Follow modes
    • ArtNet & sACN protocol through Ethernet cable
    • Local control panel, with IP65 LCD display
    • Footprint of 175 or 184 DMX channels





    Power supply

    • Electronic supply with active PFC
    • 100 to 240 Volts – 50/60Hz
    • Power: 800 W maximum



    Cooling system

    • Advanced liquid cooling system
    • IP68 Self-adjusting variable speed fans
    • Selectable ventilation user modes
    • Excess temperature protection



    Housing

    • Moving-head skeleton made in die-cast aluminium
    • Base in die-cast aluminium
    • Heatsinks in aluminium and copper
    • Moulded covers in ABS PC (V0 class)
    • Tow-side handles for transportation
    • Four heavy-duty feet
    • IP65 protection rating
    • Exterior finish: black (Carbon)





    Installation

    • Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
    • Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
    • Safety cable attachment point



    Operating parameters

    • Operating positions: all (device on floor or fixed to a support)
    • Maximum permitted ambient temperature (Ta max): 45° C (113° F)
    • Minimum permitted ambient temperature (Ta min): -20° C (-4° F)
    • Minimum usage distance: 0.5 m (1.64 ft.)



    Compliance

    EU (EMC & LVD):

    • EMC Directive 2014/30/EU
    • LVD Directive 2014/35/EU



    US (Safety & EMC)

    • CFR 47, FCC Part 15, Subpart B:2023



    Substance regulations

    • RoHS
    • REACH
    • CP65



    Size

    • Product: 1008 x 200 x 352.5 mm (l x h x d)
    • Flight-case foam: 1080 x 270 x 380 mm (l x h x d)



    Weight

    • Product: 32.4 kg



    Product codes

    • 015380: MAGICBLADE NEO - CREATIVE SERIES



    Copyright © 2001-2026 Ayrton SAS All rights reserved



    Specifications subject to change without notice.
