LaserBeam150
- Leding
- Moving Heads

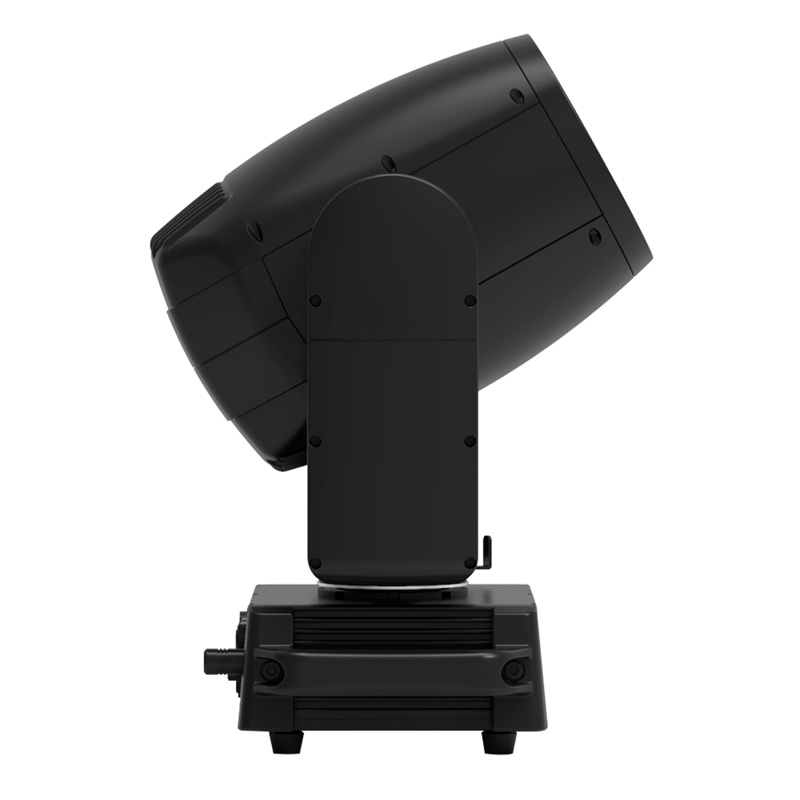

The LaserBeam 150 is a high-performance laser beam fixture designed for professional stage and event lighting. Powered by a custom 150 W laser source, it combines a 135 mm optical aperture with an ultra-narrow 1.2° beam angle, delivering up to 480,000 lux at 10 metres for an exceptionally bright and well-defined beam. Weighing just 20.6 kg, its compact design makes the fixture easy to handle, install and transport. The StarLink effect system and rotating gobo wheel provide dynamic aerial effects, while CMY colour mixing ensures smooth and precise colour control. With an IP66 rating, the LaserBeam 150 is built for demanding indoor and outdoor applications, including concerts, festivals, touring productions and professional stage events.
Optical System
Light source: 150W LASER
Lens diameter: 135mm
Angle: 1.2° (10m @ 480,000lx)
Control System
Pan/Tilt rotation: Infinite Pan, Tilt 270° (8-16 bit)
Dimming: Opera dimming effect (0-100% 24Bit dimming)
Cooling system: Forced convection
Functional effect: Display control, custom mode, 0-25Hz stobe
Channel mode: BASIC(20CH), STANDARD(24CH), EXTEND(27CH)
Control protocol: DMX512, RDM, CRMX (opcional), NFC
Effect Synthetic System
Static Gobo: static gobo wheel (19 gobos + white)
Colors: 1 color wheel (19 colors + white)
Prism: one 24 facet prism + one 5 linear prism, that can be overlayed
Color Mixing: CMY
Starlink Effect Wheel: yes, with overlayable CMY color mixing
Appearance
Size: 330 x 230 x 517mm
Weight: 20.6KG
Casting: Die casting magnesium aluminum
Color: Black
Electrical Specs
Voltage: 100-240VAC,50/60Hz
Max.Power: 230W
Power Connection: Power input and output
Signal socker: 3pin and 5pin in and out
Work Environment
Ambient Temp: -20ºC-45ºC
IP Rated: IP66
Certification
CE
