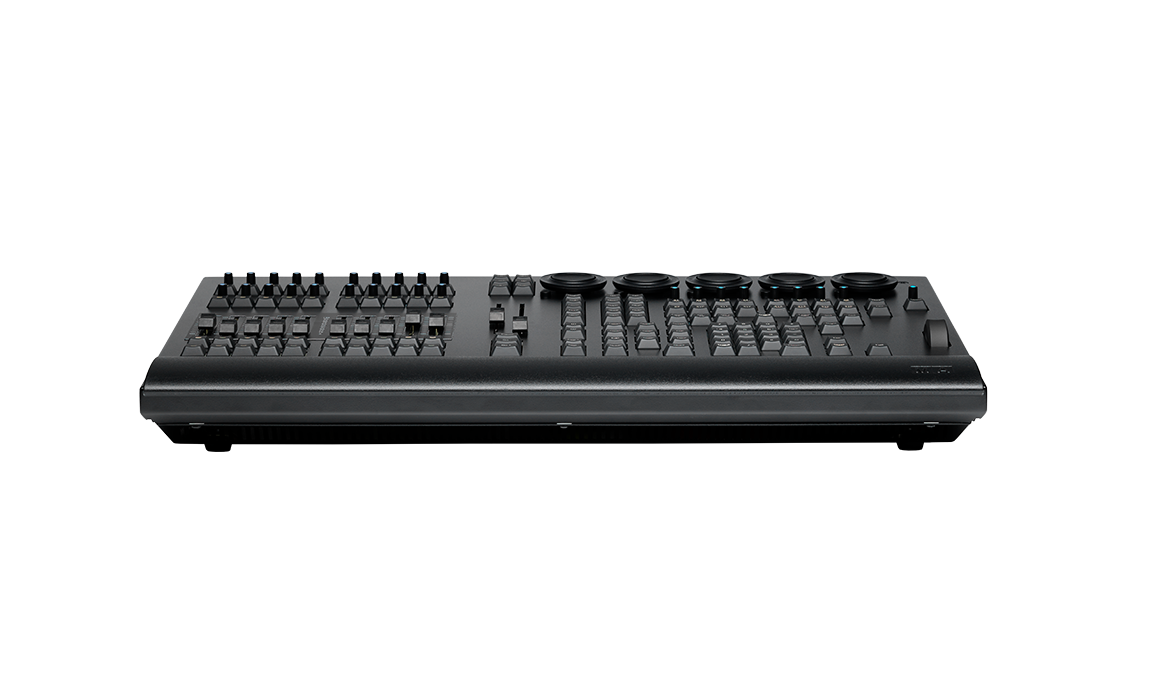

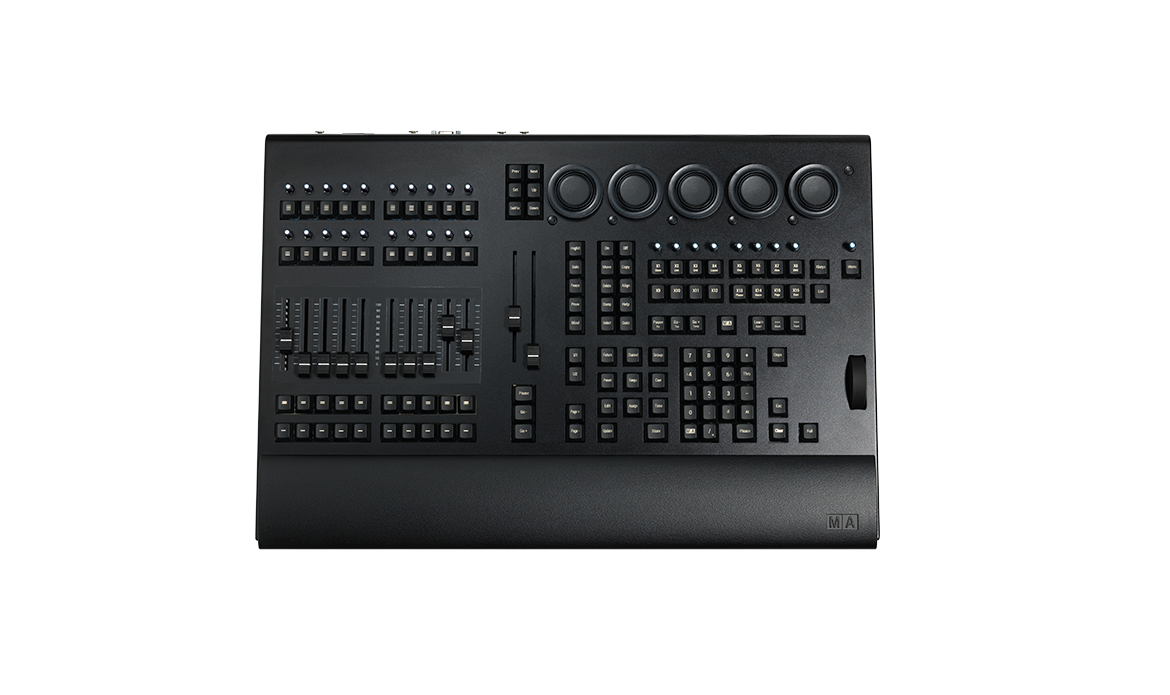

grandMA3 onPC command wing XT
The grandMA3 onPC command wing XT is the grandMA3 onPC console solution. With the grandMA3 onPC software pre-installed on the built-in, genuine MA motherboard, the grandMA3 onPC command wing XT is a 4 096 parameter console that can be used in nearly any location ? just add a touchscreen monitor, and it´s ready to go!
The grandMA3 onPC command wing XT is an extremely versatile solution for smaller and mid-sized installations and shows, streaming studios as well as a powerful preprogramming and backup tool on the road. It is built to the same highest standards of quality in software and hardware that are applied to the entire grandMA3 product range ensuring that users will benefit from this MA DNA. grandMA3 onPC command wing XT is the perfect option for new MA users as well as MA veterans.
Designed as the perfect tourable hardware solution to the grandMA3 onPC software, the grandMA3 onPC command wing XT enables the look and feel of the software to be as close to a real grandMA3 console as possible.
With 40 physical playbacks, 16 assignable x-keys and a dedicated master playback section the grandMA3 onPC command wing XT provides plenty of playback options.
Thanks to the grandMA3 onPC command wing XT incorporating the command section of the grandMA3 consoles, it has never been easier to use the grandMA3 onPC software. All inputs and outputs of a grandMA3 console are available to the user. DMX, Midi, Ethernet, Timecode and Remote Control are all on hand directly at the grandMA3 onPC command wing XT. Additionally, it comes with four individual monitor outputs and two Gigabit Ethernet connectors.
The grandMA3 onPC command wing XT provides the maximum amount of parameters available for grandMA3 onPC solutions: 4 096 parameters with built-in 2 DMX outputs and 2 Ethernet Gigabit connectors for DMX over Ethernet protocols.
The amount of physical DMX outputs varies with each grandMA3 onPC product but all of them unlock parameters for the full grandMA3 software functionality. There is no compromise in feature set and the range of products allow you to make the right choice for your budget or individual needs.
There are three choices for onPC solutions: the grandMA3 onPC command wing XT, which is the ultimate grandMA3 onPC console solution, the grandMA3 onPC command wing, which offers the ultimate grandMA3 mobile solution, and the grandMA3 onPC xPort Nodes, which offer the most cost-effective DMX output solution for software only show control.
- Real-time control for 4 096 parameters in combination with grandMA3 onPC software – pre-installed on built-in MA motherboard
- Command section same as grandMA3 onPC command wing
- 29 rotary RGB backlit encoder
- 5 dual encoders
- 10 motorized 60 mm faders
- 40 separate playbacks
- 16 assignable x-keys
- 2 motorized A/B faders 100mm
- 1 Level-Wheel
- Individually backlit and dimmable silent (clickless) keys
